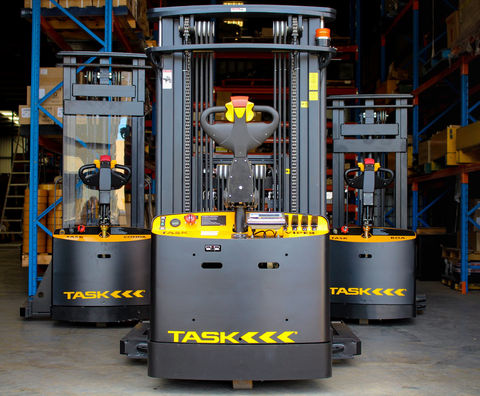

With electronic power steering operators of the TASK® VIPER® pedestrian reach stackers find them simple to operate and easy to use in tight spaces.
The VIPER® comes as standard with a tilting carriage, side-shift and pantographic reach . All the functions including lift and lower are controlled using Task’s VTC (Variable Total Control) module. This provides users with absolute control when operating the VIPER®.
The VIPER® includes a large industrial battery allowing operators multiple shift use before needing to be recharged. The chassis incorporates the latest Laser Lock technology, offering a lifetime
warranty on chassis.
Fork carriage is an integrated welded unit and fully rollered to ensure smooth, durable, long last performance.
Our ergonomically designed handles, allow users to operate the VIPER® using the forward and reverse butterfly control for precise manoeuvring and easy access of the lift/ lower functions for both left and right handed operators.
VIPER Features List.
a 1500kg and 2000kg Lifting Capacity
a 2.5m - 6.0m Lifting Height
a Two stage and three stage mast configurations
a Full Free Lift Available with 3-stage mast configuration
a 290ah and 510ah Industrial Lead Acid Battery options
a Optional Maintenance Free SMART Battery
a Intelligent External (Single Phase) Charger
a Tilting Carriage as standard
a Side-shift function as standard
a Electric Power Steering
a Proportional Controls for precise handling
a Australian Steel Chassis
a Australian Engineering and Design
a Safe to use in all types of Warehouses
a Built to Australian Standards
a No license required to operate
a Can be to adjusted to meet environmental requirements
a Programmed different operator skill levels.
Packed with the latest electronics and safety technology, the VIPER reach stacker offers more power, more control and more manoeuvrability.
Pricing starts from,
$29,868 (1) (2)
(1) Pricing excludes GST
(2) Base unit is VIPER 1.5-4.5Tri SS
Lets get a quote?
What is a Reach Stacker?
The Walkie Reach Stacker is the ultimate addition to any warehouse. Based on a straddle stacker type design; reach stackers also incorporate a Reach function to allow operators to handle materials with more precision.
The exceptionally versatile TASK Viper Walkie Reach Stacker has a number of attributes that help maximize productivity, and increase efficiency in the warehouse. Firstly our Reach function utilises a pantographic mechanism which has remained unchanged over our 40 years of manufacturing. The heavy duty design of the pantograph reach mechanism combined with “matched” heavy duty tapered roller bearings and a single large reach cylinder are proven to be the strongest, and most reliable combination in the international market.
Our pedestrian Walkie Reach Stackers don’t require an area for the operator to sit down or operate complex controls; eliminating the need for extensive training and licenses.
Our Reach Walkie Stacker is operated with one person standing behind it. Using our ergonomically designed handles and control system, operators can easily maneuver the unit, and use up and down lift, tilt, reach and side-shift controls to handle materials.
